Set up WLAN under Android
We recommend using the geteduroam app to directly preset all the required and current configuration settings. Otherwise, use these instructions for manual configuration.
Note:
Terms and menus may differ from these instructions depending on the Android version and device.
Step 1: Download certificate
1.
In the first step, the root certificate "HARICA TLS RSA Root CA 2021" must be installed on the corresponding device. The following link must be called up on the Android device:
harica-rsa-server-root-2021.cer
2.
Switch to certificate installation in the Android settings (e.g. via Security > Additional security settings > Encryption & credentials > Install a certificate).
Select WLAN certificate there.
4.
The certificate must then be named.
Certificate name:
-> Harica eduroam
Click OK to finalise the installation.
Step 2: Configure WLAN
1.
First call up the settings for WLAN via "Settings > Wireless and networks > WLAN".
2.
WLAN must first be activated so that the available networks are displayed.
The connection to the campus network is established via the "eduroam" network. After selecting this entry, the following configuration window appears.
3.

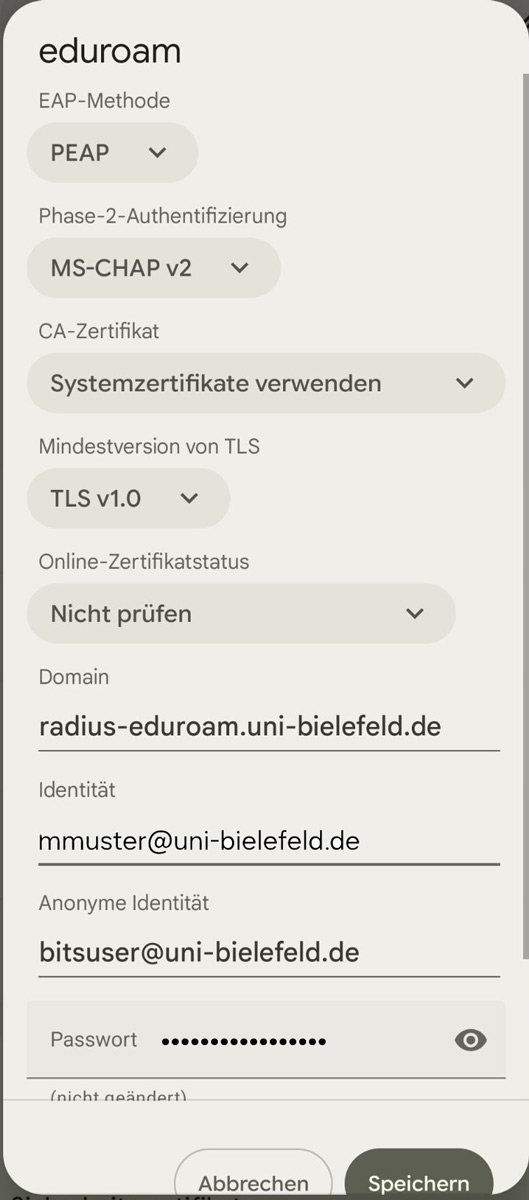

These settings must be made.
Security:
-> WPA/WPA2-Enterprise
EAP method:
-> PEAP
Phase 2 authentication:
-> MSCHAPV2
CA certificate:
-> Harica eduroam
Domain:
-> uni-bielefeld.de
Identity:
-> BITS-Loginname@uni-bielefeld.de
Anonymous identity:
-> bitsuser@uni-bielefeld.de ( do not enter your personal login here)
Password:
-> BITS password (network password)
Then confirm via"Back" or Connect / Save.
An attempt is made to establish a connection immediately.
